In the rapidly evolving world of electronics and industrial applications, thermal management has become a critical concern. As devices become smaller and more powerful, efficiently managing heat generation is paramount to ensure performance and longevity. One material that has gained significant attention in this domain is Graphite Paper. Known for its exceptional thermal conductivity and flexibility, graphite paper is revolutionizing the way engineers approach thermal regulation in electronic devices and industrial sealing solutions.

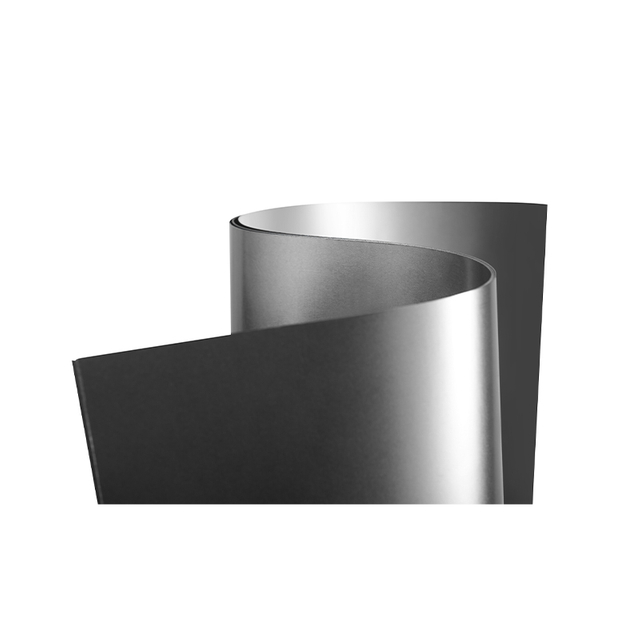

Graphite paper is engineered from high-quality graphite flakes that are processed into thin sheets. Its unique structure consists of layers of graphene—sheets of carbon atoms arranged in a hexagonal lattice—which grant it remarkable thermal properties. The in-plane thermal conductivity of graphite paper can reach up to 1,800 W/m·K, which is significantly higher than traditional materials like copper or aluminum.
One of the standout characteristics of graphite paper is its anisotropic thermal conductivity. This means it conducts heat much more effectively along the plane of the sheet than through its thickness. Specifically, the in-plane thermal conductivity is exceptionally high, while the through-plane conductivity is relatively low. This property enables efficient heat spreading across surfaces, making it ideal for managing hotspots in electronic components.
Beyond thermal performance, graphite paper is lauded for its flexibility. It can conform to curved and irregular surfaces, accommodating complex geometries found in modern electronic devices. This adaptability reduces thermal interface resistance, ensuring optimal contact between heat sources and thermal management components.
The miniaturization of electronic components has led to increased power densities, making thermal management more challenging. Graphite paper addresses these challenges across various electronic applications.
In smartphones and tablets, space is at a premium. Graphite paper's ultra-thin profile—often just a fraction of a millimeter thick—allows it to be integrated without adding bulk. It efficiently spreads heat generated by processors and batteries, enhancing device performance and user comfort.
Wearable devices like smartwatches and fitness trackers benefit from graphite paper's lightweight and flexible nature. We can incorporate it into these devices to manage heat without compromising design or functionality.
Data centers and high-performance computing systems generate substantial heat due to high processing loads. Graphite paper aids in dissipating this heat efficiently, maintaining system stability and preventing thermal throttling.
In industrial applications, sealing materials must withstand harsh conditions, including extreme temperatures and chemical exposure. Graphite paper gaskets provide reliable sealing solutions due to their excellent thermal stability and chemical resistance.
Graphite paper maintains its structural integrity in the presence of aggressive chemicals, making it suitable for use in the chemical processing industry. It resists corrosion and degradation, ensuring long-term performance of seals and gaskets.
We find graphite paper particularly useful in high-temperature applications. It can withstand temperatures up to 3,000°C in non-oxidizing environments, making it ideal for sealing applications in furnaces, reactors, and exhaust systems.
Ongoing research and development are enhancing the capabilities of graphite paper. Innovations include the integration of graphene layers, improving thermal conductivity, and the development of composite materials that combine graphite with metals or polymers for tailored properties.
Manufacturers have introduced ultra-thin graphite sheets, as thin as 10 micrometers, which are perfect for space-constrained applications. The thinness doesn't compromise thermal performance, providing efficient heat spreading in minimal space.
By laminating graphite paper with copper or aluminum foils, we can enhance mechanical strength and electrical conductivity. These composites are advantageous in applications requiring electromagnetic interference (EMI) shielding alongside thermal management.
Real-world applications highlight the efficacy of graphite paper in thermal management. Let's examine some notable implementations.
Leading smartphone manufacturers have adopted graphite paper to address overheating issues. For instance, the integration of graphite sheets in the iPhone series has significantly improved heat dissipation, enhancing performance during intensive tasks like gaming or video streaming.
Electric vehicles (EVs) rely on efficient thermal management to maintain battery performance and longevity. Graphite paper is used in battery packs to evenly distribute heat, preventing hotspots that can degrade battery cells over time.
In industrial settings, graphite paper is utilized in heat exchangers due to its high thermal conductivity and corrosion resistance. We see improved efficiency in systems like chemical reactors and power plants, where effective heat transfer is crucial.
When compared to traditional thermal management materials, graphite paper offers distinct advantages.
Copper and aluminum have been standard materials for heat sinks and thermal interfaces. However, graphite paper surpasses them in thermal conductivity per unit weight. While copper's thermal conductivity is around 400 W/m·K, graphite paper can achieve over 1,500 W/m·K. Additionally, graphite is significantly lighter, contributing to overall device weight reduction.
Although often confused, graphite paper and carbon paper differ in structure and performance. Carbon paper is primarily used for its electrical conductivity and is less effective in thermal applications. Graphite paper's crystalline structure offers superior thermal properties, making it the preferred choice for heat management.
While graphite paper presents numerous benefits, there are challenges to its implementation.
Graphite paper can be brittle, which may pose challenges during handling and application. Laminating it with supportive materials or incorporating it into composites can mitigate this issue.
High-quality graphite paper can be more expensive than traditional materials. However, the performance benefits often justify the cost, especially in high-end or critical applications.
The future of graphite paper in thermal management looks promising, with research focusing on enhancing its properties and expanding its applications.
As we develop flexible electronics and wearable devices, the need for materials that can conform to varied shapes while managing heat becomes critical. Graphite paper's flexibility makes it a suitable candidate for these applications.
Innovations in manufacturing are enabling the production of graphite paper with enhanced mechanical properties and at reduced costs. Techniques like chemical vapor deposition (CVD) are being explored to produce high-quality graphite sheets efficiently.
Graphite paper has emerged as a pivotal material in thermal management for electronics and industrial sealing. Its exceptional thermal conductivity, flexibility, and adaptability address the challenges posed by miniaturization and high-power densities in modern devices. While there are considerations regarding mechanical strength and cost, the benefits it offers make it an attractive solution. As technology advances, we anticipate that graphite paper will play an increasingly significant role in ensuring the efficiency and reliability of electronic and industrial systems.
Graphite paper's high in-plane thermal conductivity allows it to efficiently spread heat across its surface, reducing hotspots in electronic components. Its thinness and flexibility enable integration into space-constrained devices, enhancing overall thermal performance.
Compared to materials like copper and aluminum, graphite paper offers higher thermal conductivity per unit weight and is significantly lighter. This makes it ideal for applications where weight and space are critical factors.
Yes, graphite paper exhibits excellent thermal stability and can withstand temperatures up to 3,000°C in non-oxidizing environments. This makes it suitable for high-temperature industrial applications and sealing solutions.
One of the main limitations is its mechanical fragility. Graphite paper can be brittle, which may complicate handling and integration. Additionally, the cost may be higher than traditional materials, but the performance benefits often outweigh this drawback.
Graphite paper is produced by processing high-quality graphite flakes into thin sheets through processes like exfoliation and recompression. Advanced techniques like chemical vapor deposition are also being explored to enhance quality and production efficiency.
Graphite is a naturally occurring form of carbon and is considered environmentally benign. The production and disposal of graphite paper have a relatively low environmental impact compared to synthetic materials.
