Why Isotropic Graphite Parts Are Essential Components in Photovoltaic Manufacturing

In the global push for cleaner, more sustainable energy sources, photovoltaic (PV) technology has rapidly evolved into one of the leading solutions. As countries and industries invest heavily in solar energy infrastructure, the demand for efficient, durable, and high-performance manufacturing processes is at an all-time high. At the heart of these processes lies a surprising hero: isotropic graphite.

While it may not be as widely recognized as silicon in the solar world, isotropic graphite parts are critical to almost every stage of photovoltaic manufacturing. Their unique combination of thermal stability, purity, machinability, and mechanical strength make them indispensable for creating high-quality solar wafers and cells.

1. Critical Processes in Photovoltaic Manufacturing

To fully appreciate the role of isotropic graphite in the PV industry, it's important to understand the complex and heat-intensive processes required to produce solar cells.

1.1 Monocrystalline and Polycrystalline Silicon Ingot Growth

Silicon is the primary raw material used in photovoltaic cells. The process of transforming raw silicon into high-efficiency wafers starts with ingot production using two primary techniques:

• Czochralski (CZ) Method – Used for      growing monocrystalline silicon ingots, where a seed crystal is slowly      pulled from molten silicon in a high-temperature crucible while rotating.

• Directional Solidification System (DSS) – Commonly      used for polycrystalline silicon, where molten silicon is gradually cooled      to promote grain formation in a mold.

Both techniques demand extreme precision and temperature control, as even slight deviations can lead to crystalline defects that reduce solar cell efficiency. Temperatures can reach up to 1420°C, making traditional materials unsuitable.

This is where isotropic graphite comes in—it is used extensively in crucibles, heating zones, insulation parts, and structural supports in these furnace systems.

1.2 Wafer Processing: Cleaning, Diffusion, and Thermal Treatments

Once the silicon ingot is grown, it is sliced into thin wafers and subjected to several critical processes:

• Cleaning: Removing particles and      organic/inorganic residues using strong acids and bases.

• Diffusion: Introducing phosphorus or      boron atoms to create the p-n junctions necessary for converting sunlight      into electricity.

• Annealing and Oxidation: Heating      wafers in controlled atmospheres to repair structural defects and form      passivation layers.

These processes often involve high temperatures (up to 1000°C), corrosive gases (like HCl, O₂, or phosphine), and high-purity requirements—factors that challenge most conventional materials but are easily handled by isotropic graphite components.

2. Application of Isotropic Graphite Parts in PV Manufacturing

Because of these extreme manufacturing conditions, isotropic graphite's performance characteristics make it the perfect fit for a wide variety of roles.

2.1 Hot Zone Components: Thermal Control and Crucibles

One of the most critical applications of isotropic graphite is in the thermal control systems of ingot production furnaces:

• Graphite Heating Elements: Offer      uniform, controllable heating thanks to excellent electrical conductivity.

• Insulating Shields: Reduce heat loss and protect      components from oxidation and radiation.

• Graphite Crucibles: Used to hold molten silicon,      providing structural integrity and thermal uniformity without      contaminating the melt.

These components must maintain their strength, geometry, and purity under repeated thermal cycling, which can degrade other materials. SIAMC’s graphite materials are engineered to provide exceptional longevity and consistency across batches.

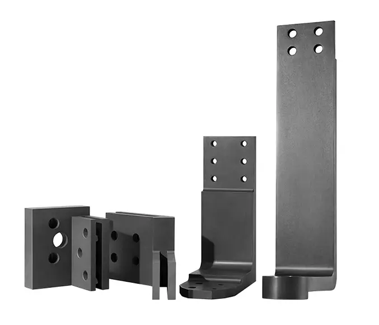

2.2 Support and Handling Structures: Boats, Trays, and Fixtures

Downstream from ingot growth, graphite continues to play a role in wafer handling and processing:

• Wafer Boats: Designed to hold multiple      wafers vertically or horizontally in diffusion and annealing furnaces.

• Process Trays: Carry wafers through      high-temperature chambers without deformation.

• Fixtures and Clamps: Secure wafers during      transport or chemical exposure, ensuring alignment and precision.

These parts are custom-machined to micron-level tolerances to fit the exact dimensions of wafers and process chambers. With excellent wear resistance and low coefficient of friction, they also enable automated handling systems to operate efficiently and safely over time.

3. Why Isotropic Graphite Is the Ideal Material for PV Manufacturing

With so many challenges in photovoltaic manufacturing, isotropic graphite's properties directly address key pain points in the industry.

3.1 Ultra-High Purity and Chemical Inertness

Purity is paramount in solar manufacturing. The presence of even a few metal ions or trace contaminants can negatively affect the electronic properties of a solar cell. SIAMC’s graphite materials are refined to ultra-high purity levels (up to 99.999%), and they undergo special anti-oxidation or coating treatments to further reduce contamination risk.

Graphite also remains chemically inert in most acid and base environments, making it suitable for wet chemical cleaning, diffusion, and doping steps.

3.2 Excellent Thermal Stability and Uniform Conductivity

Isotropic graphite offers superior performance at high temperatures:

• Melting point above 3600°C

• Low thermal expansion (< 5×10⁻⁶/°C)

• High thermal conductivity (up to 200 W/m·K)

This allows it to withstand rapid heating/cooling cycles, avoid cracking or warping, and maintain uniform temperature profiles across wafers. Such thermal stability leads to better crystal quality and higher solar conversion efficiency.

3.3 Lightweight, Rigid, and Precision-Machinable

Graphite’s low density (about 1.8–2.0 g/cm³) compared to metals or ceramics makes it ideal for movable furnace components and automated wafer handling. It is also easy to machine, allowing for the fabrication of:

• Thin-walled boats

• Intricate insulation geometries

• Complex electrode patterns

At SIAMC, all machined graphite parts are produced using CNC equipment, multi-axis machining centers, and custom CAD modeling to meet precise technical drawings and tolerances.

3.4 Cost-Effective and Long-Lasting

In addition to performance, isotropic graphite parts are also economical over their lifecycle. They:

• Last longer under repeated thermal stress

• Are reusable across multiple cycles

• Require minimal maintenance or replacement

This translates to lower total cost of ownership (TCO) for photovoltaic equipment manufacturers and contributes to greater operational efficiency.

4. SIAMC: Your Trusted Partner for Isotropic Graphite Solutions

At SIAMC Advanced Materials Co., Ltd., we specialize in the production and customization of machined isotropic graphite parts for the photovoltaic, semiconductor, aerospace, and industrial furnace sectors.

What Sets SIAMC Apart?

• Advanced CNC Machining: Enabling tight tolerances      and complex geometries.

• Material Expertise: Sourcing and processing      high-purity graphite blocks.

• Rapid Prototyping & Batch Production: From a      single custom piece to volume orders.

• Quality Control Systems:      ISO-certified testing procedures, dimensional inspections, and purity      validations.

Whether you need a custom graphite crucible for a CZ furnace or wafer carriers for high-throughput diffusion, SIAMC delivers engineered graphite solutions that support the world’s most demanding manufacturing environments.

Conclusion

Photovoltaic manufacturing is a high-precision, high-temperature, and high-purity process. At every stage—from silicon crystal pulling to wafer annealing—isotropic graphite components play a vital role in ensuring quality, consistency, and efficiency.

With unmatched thermal performance, chemical resistance, and precision machining capability, isotropic graphite has earned its place as the backbone of solar cell production infrastructure.

As the industry continues to grow and evolve, the demand for reliable, high-performance graphite parts will only increase. SIAMC is proud to stand at the forefront of this evolution, offering cutting-edge graphite solutions tailored to the needs of the world’s leading photovoltaic manufacturers.

To explore how SIAMC can support your manufacturing operations, visit www.siamccarbon.com or contact our engineering team for a consultation.
