Graphite is widely used in industries that operate under extreme conditions—high temperatures, aggressive chemicals, and heavy mechanical loads. Whether in vacuum furnaces, metallurgical molds, electrodes, or battery casings, graphite components are prized for their thermal conductivity, chemical inertness, and strength. However, these very applications expose graphite parts to significant thermal shock, mechanical stress, and chemical attack.
Over time, cracks, fractures, and edge chipping may develop, especially during operation or handling. If such defects are not promptly and effectively repaired, the consequences can be severe: escalating operational costs, prolonged equipment downtime, and potential safety hazards.
Enter graphite adhesive—a specialized bonding agent engineered to provide a practical, efficient solution for restoring the structural and functional integrity of damaged graphite parts.

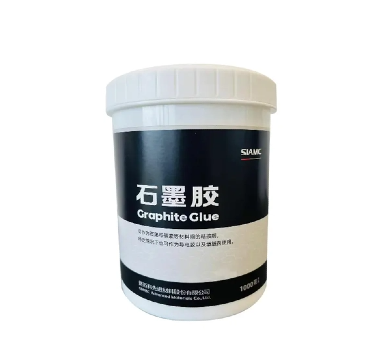

Graphite adhesive is a high-performance bonding material that combines ultra-fine graphite powder with ceramic or carbon-based binders, suspended in a water-based or inorganic solvent system. It is specifically designed to adhere well to graphite substrates, maintaining compatibility even under harsh working conditions.
One of the most notable advantages of graphite adhesive is its resistance to extreme temperatures. High-quality variants can withstand temperatures ranging from 800°C to over 3000°C, depending on the binder system.
Additionally, graphite adhesive is chemically stable in acidic, alkaline, and inert gas environments, making it highly suitable for corrosive applications such as molten metal casting or gas diffusion systems.
Graphite adhesive shares similar thermal conductivity and thermal expansion properties with graphite substrates. This ensures a stable bonding interface, reducing the risk of delamination or failure due to differential expansion. Furthermore, its electrical conductivity makes it ideal for electrode and furnace applications, where performance continuity is vital.
Before proceeding with any repair, it's crucial to analyze the nature of the damage:
Crack Depth and Position: Superficial surface cracks may require only minimal adhesive, while deep or through-cracks may need reinforced bonding.
Fracture Severity: Completely broken parts might require precise alignment and external clamping during curing.
Repair vs. Replacement: If a component is severely worn or structurally compromised, replacing it may be more cost-effective.
Surface contaminants like oils, graphite dust, and oxidation layers must be removed:
Wipe the damaged area with lint-free cloths soaked in alcohol.
Lightly abrade the surface with fine sandpaper to enhance bonding.
Avoid fiber-based cleaning materials that may leave residues.
Prepare the following tools and ensure a clean, low-humidity work environment:
Tools: Applicator syringe, spatula, clamps, hot air gun, and a temperature-controlled oven.
Workspace: Well-ventilated, free of metal dust or airborne particles, and kept at moderate temperature and humidity levels.
Single-component systems: Gently stir the adhesive to a uniform consistency without introducing air bubbles.
Two-component systems: Mix components strictly according to manufacturer instructions. Use a de-airing process if possible to prevent bubble formation.
Cracks: Use an injection method to fully fill the fissure. Ensure deep penetration to avoid hollow bonding.
Fractures: Apply adhesive generously to the mating surfaces. Press the two parts together while aligning accurately.
Edge Chipping: Build an external reinforcement layer using thicker adhesive coatings or wrap-around patch materials.
Lightly clamp the component to maintain pressure and alignment without displacing the adhesive.
Initial curing can take 1 to 4 hours, depending on adhesive formulation and ambient conditions.
When using graphite adhesive, room temperature curing is generally adequate for small-scale repairs or components that will operate under relatively low-temperature conditions. This method allows the adhesive to set naturally without additional energy input. However, for industrial or high-performance applications where faster curing and enhanced bond strength are critical, an assisted heating process is recommended. Applying controlled heat between 60°C and 150°C using tools such as a hot air gun or a temperature-controlled oven can significantly accelerate the curing reaction, improving the adhesive’s mechanical properties and ensuring a more durable, reliable bond.
For enhanced mechanical strength and durability, it is recommended to perform a high-temperature sintering process after applying graphite adhesive. Sintering at temperatures of 800°C or above in a vacuum or inert gas atmosphere helps to densify the adhesive layer, improving its bonding performance. This treatment makes the repaired graphite components suitable for demanding ultra-high-temperature environments.
When curing graphite adhesive, it is crucial to follow precise process precautions to ensure optimal bond quality and avoid damage. First, the temperature should be increased gradually at a controlled rate of 3–5°C per minute to prevent thermal shock that could cause cracking. Once the target peak temperature is reached, maintain this temperature for 1 to 2 hours or according to the adhesive manufacturer’s specifications to allow complete curing and bonding. Finally, the component should be cooled slowly and steadily back to room temperature to minimize thermal stresses and prevent secondary cracks or delamination in the repaired graphite parts.
Problem | Likely Cause | Recommended Solution |
Weak adhesion | Poor surface prep, low penetration | Re-clean surface, reapply with clamping |
Air bubbles in cured joint | Air trapped during mixing | Use vacuum degassing or fill in stages |
Adhesive failure at high temp | Incomplete curing or mismatched CTE | Extend curing time, use better-matched adhesive |
Discoloration or brittleness | Unsuitable adhesive or thermal cycling | Use high-temp-rated graphite adhesives, control heating/cooling rates |
Damage: Longitudinal crack due to thermal fatigue
Method: Injection of high-purity graphite adhesive followed by thermal pressing and sintering
Result: Mechanical strength restored to over 90%; service life extended by 6 months
Damage: Edge erosion from mechanical impact
Method: External layer reinforcement with fast-cure graphite adhesive
Result: Mold salvage without replacement, saving over 40% in replacement costs
Damage: Complete fracture from mechanical overload
Method: Rejoined using carbon-rich, highly conductive graphite adhesive
Result: Maintained electrical conductivity, compatible with mid-frequency furnace operation
When working with graphite adhesive, always wear protective gloves and a mask to avoid skin irritation and prevent inhalation of fine graphite dust, which can pose respiratory risks. Store the adhesive in a cool, dry, and well-sealed container to preserve its shelf life and prevent premature curing. After each use, thoroughly clean all tools and application equipment to avoid hardened residue that can hinder future use or contaminate sensitive components. As part of routine maintenance, regularly inspect repaired areas for signs of new cracks, surface discoloration, or delamination, ensuring early detection and timely intervention to maintain equipment performance and safety.
Graphite adhesive presents a robust, efficient, and highly specialized solution for addressing the challenges of damaged graphite components. Whether it’s restoring thermal conductivity, maintaining structural integrity, or preserving chemical resistance under extreme conditions, graphite adhesive provides reliable performance.
The process is straightforward, cost-effective, and delivers results that rival or exceed the original component’s functionality. However, success relies on proper product selection, preparation, and curing.
For those seeking customized repair solutions and reliable adhesive materials, we recommend working with trusted suppliers such as SIAMC, a company known for its expertise in high-performance graphite materials and repair technologies.
