Engineering Uses for Vibration Molded Graphite Blocks

Heavy industrial applications consistently present a difficult engineering challenge. You must balance extreme thermal performance requirements against strict size limitations and tight budgets. Resolving this tension requires precise material selection. Vibration molding serves as the definitive production standard for forming oversized carbon components. It achieves the necessary uniform density without incurring the premium pricing associated with isostatic pressing. Relying on this manufacturing approach secures structural reliability for massive industrial elements. This guide provides a clear framework for engineers and procurement teams. You will discover how to evaluate, specify, and source these robust materials effectively for high-stress environments. By analyzing structural nuances and identifying operational boundaries, you can confidently integrate these carbon structures into demanding metallurgical, aerospace, and thermal operations.

Key Takeaways

• Vibration molded graphite offers an optimal balance of thermal stability and cost-efficiency for large-scale industrial components.
• It is the preferred manufacturing method when a large graphite block is required, as it reduces internal stress fractures during the baking and graphitization processes.
• Typical applications include metallurgy, aluminum degassing, and vacuum furnace structures where high temperature graphite block performance is non-negotiable.
• Evaluation must factor in the inherent limitations of medium grain vibration molded graphite, specifically regarding mechanical strength compared to fine-grain isostatic alternatives.

Why Specify Vibration Molded Graphite Over Extruded or Isostatic?

Selecting the correct manufacturing process dictates the performance of your final component. Engineers often debate between extruded, isostatic, and vibration molded materials. Each method produces distinct structural realities. Understanding the high-frequency vibration process helps you make informed choices.

Manufacturers place a heated carbon paste into large molds. Heavy machinery then applies intense, high-frequency vibrations to the mixture. This shaking forces the carbon particles to settle tightly together. It drives out trapped air pockets efficiently. Consequently, the resulting structure contains far fewer internal voids than standard extruded graphite. Extrusion forces material through a die, often aligning particles poorly and leaving structural weaknesses. Vibration molding eliminates this severe directional weakness.

Consider the economic realities of scaling up component size. Producing massive carbon structures requires careful financial calculation. Isostatic pressing applies uniform pressure from all sides using a liquid medium. It produces exceptional fine-grain graphite. However, the equipment limits component size. Pressing extremely large blocks becomes economically unviable. Vibration molding stands as the only cost-effective method for producing massive sections. You will routinely see blocks exceeding 1000mm x 400mm x 400mm manufactured this way.

Grain structure heavily influences mechanical outcomes. Extruded materials often feature coarse grains exceeding 3.0mm. They are cheap but structurally inconsistent. Fine-grain isostatic blocks feature grains under 0.1mm. They hold sharp details but cost a premium. Conversely, medium grain vibration molded graphite typically ranges from 0.8mm to 2.0mm. This profile wins where sheer mass and thermal stability matter more than microscopic surface detailing.

Core Engineering Uses and Application Frameworks

High-Temperature Vacuum and Inert Gas Furnaces

Advanced thermal processing relies heavily on carbon structures. Vacuum furnaces and inert gas environments require resilient internal architectures. Common applications include massive heating elements, susceptors, and structural furnace hearths. These components bear the physical load of heavy metal parts during heat treatment.

Engineers judge success by extreme thermal cycling capabilities. A reliable high temperature graphite block must withstand temperatures approaching 3000°C in inert atmospheres. It must perform consistently without structural warping or catastrophic failure. When exposed to alternating heating and cooling cycles, inferior materials develop micro-cracks. Vibration formed structures resist this thermal fatigue beautifully.

Design teams must rigorously calculate the Coefficient of Thermal Expansion (CTE). Furnace hearths often mate directly to metallic fixtures or molybdenum rails. Metals expand rapidly under heat. Graphite expands very little. If you bolt these materials together tightly, the expanding metal will shear the brittle carbon. You must design floating joints or slotted connections to accommodate these differing expansion rates.

Metallurgy and Continuous Casting

The non-ferrous metal industry consumes vast amounts of carbon materials. Aluminum, copper, and brass foundries operate in highly aggressive environments. Key applications include run-out tables, degassing shafts, spinning rotors, and large melting crucibles.

Success in metallurgy hinges on non-wettability. Molten aluminum and copper do not stick to graphite. This chemical inertness allows metal to flow smoothly over run-out tables without slag build-up. Thermal shock resistance is another crucial metric. Plunging a cold degassing rotor into a vat of 700°C molten aluminum stresses the material immensely. The medium grain structure absorbs this shock without shattering. It maintains necessary structural integrity during prolonged submerged operations.

Large-Scale Machining and Industrial Tooling

Precision manufacturing demands stable tooling materials. Heavy industry uses carbon for sintering molds, oversized EDM (Electrical Discharge Machining) roughing electrodes, and chemical electrolysis anodes. These applications require monolithic integrity.

Sintering diamond tools or machining large aerospace dies requires immense raw materials. You need the ability to machine a single large graphite block into complex shapes. During CNC machining, operators cannot afford to hit hidden internal voids or sudden soft spots. A hidden void can snap a cutter instantly. It can ruin an expensive electrode mid-production. The consistent density of vibrated blocks prevents these costly part rejections. It ensures uniform wear rates across the entire electrode surface during the EDM burning process.

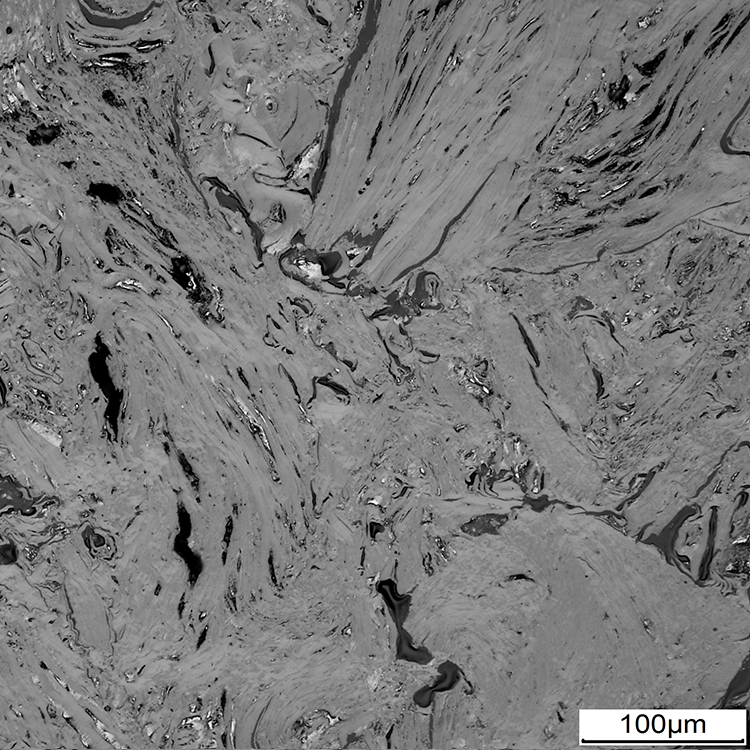

Technical Evaluation Dimensions: Features to Outcomes

Procurement teams and engineers must speak the same technical language. Relying on visual inspections leads to catastrophic field failures. You must evaluate raw blocks across four specific measurable dimensions.

Bulk density directly influences longevity and strength. Acceptable ranges typically fall between 1.70 and 1.75 g/cm³. High density translates to low porosity. Lower porosity limits oxygen penetration into the material matrix. Consequently, it slows oxidation rates and extends service life significantly. If a supplier provides a block reading 1.60 g/cm³, you should expect rapid degradation.

Flexural and compressive strength define mechanical limits. Compressive strength measures load-bearing capacity. Flexural strength measures resistance to bending. Carbon materials boast excellent compressive strength. However, engineers must design assemblies to avoid excessive tensile or flexural loads. If you support a heavy load on a long, thin carbon beam, it will snap. Always design for compression.

Ash content determines material purity. Impurities inside the carbon matrix act as catalysts for unwanted chemical reactions. Standard purity levels usually sit below 0.1% (or 1000 ppm). This baseline works perfectly for metallurgy and standard furnaces. However, semiconductor manufacturing or high-end aerospace uses require extreme purity. In these cases, secondary halogen purification becomes mandatory to drive ash content below 5 ppm.

Anisotropy awareness prevents machining disasters. Isostatic materials exhibit isotropic properties, meaning they behave identically in all directions. Vibration molded blocks exhibit slight anisotropic properties. They have a distinct forming direction. Mechanical strength and thermal conductivity vary slightly depending on how you orient the part relative to this forming direction. Machining orientation must align correctly to maximize the load-bearing strength of the finished component.

Table 1: Baseline Evaluation Metrics for Industrial Carbon Types

Implementation Risks and Material Limitations

Even premium carbon structures possess physical vulnerabilities. Anticipating these limitations prevents expensive equipment damage. You must design operating procedures to mitigate three major risks.

The foremost risk is oxidation. Unprotected carbon begins oxidizing in standard atmospheric air at roughly 400°C. Once oxidation begins, the material literally vaporizes into carbon dioxide. It loses mass rapidly and becomes structurally compromised. To combat this:

• Operate equipment exclusively in strict vacuum environments.
• Flood furnace chambers using inert gases like argon or nitrogen.
• Apply specialized anti-oxidation silicon carbide (SiC) coatings if air exposure is unavoidable.

Machining realities require specialized factory setups. Carbon dust is highly abrasive and electrically conductive. If airborne dust settles onto standard CNC circuit boards, it will short them out instantly. Machine shops require powerful, dedicated dust extraction vacuums. Additionally, standard steel tooling wears out in minutes. You must utilize diamond-coated cutters or specialized carbide tooling. These tools maintain tight tolerances and prevent edge chipping on medium-grain blocks.

Handling and transport present severe logistical vulnerabilities. Large industrial blocks often weigh several tons. Despite their massive weight, they remain extremely brittle. A sudden impact against a steel beam will shatter the block.

1. Never use standard metal chains for lifting.
2. Always utilize wide nylon rigging straps to distribute the load evenly.
3. Install thick rubber padding around the block corners during shipping.
4. Ensure forklift operators train specifically for handling brittle loads.

Sourcing Criteria and Shortlisting Logic

Securing a reliable supply chain requires strict vetting procedures. The global market contains highly variable product qualities. You cannot rely on visual appearance to judge internal stability.

Supplier validation prevents premature component failure. You must verify a manufacturer's baking and graphitization capacity. Producing vibration molded graphite requires maintaining temperatures around 2800°C for weeks. A common failure point among cheaper imports involves inconsistent graphitization temperatures. Some factories rush the process to save electricity. This corner-cutting leaves ungraphitized hard spots inside the block, which destroy CNC tools.

Demand rigorous batch testing and documentation. Generic marketing specification sheets offer no real protection. You should require exact testing data per shipped batch. Demand testing aligned with recognized ASTM standards. Verify the actual bulk density, electrical resistivity, and flexural strength of your specific lot. Traceability ensures accountability if a part fails under pressure.

Before committing to a multi-ton freight order, take incremental steps. Advise your purchasing team to request a comprehensive material data sheet (MDS). Furthermore, mandate a small machinability sample. Testing a small block allows your CNC operators to verify tool wear rates and surface finish capabilities before you risk machining a massive, expensive component.

Conclusion

Industrial engineering requires materials capable of surviving extreme environments without breaking budgets. Vibration molding solves the specific challenge of sourcing massive, thermally stable components without the severe cost overruns associated with isostatic pressing. By settling carbon paste through high-frequency consolidation, this method delivers reliable density for heavy-duty applications.

Engineers must carefully align their mechanical load limits and precision requirements with the realities of medium-grain structures. Always design for compressive strength, accommodate thermal expansion mismatches, and protect the material from oxidation above 400°C. Thoroughly vet suppliers by demanding batch-specific ASTM testing data to ensure consistent graphitization.

Do not finalize your blueprints without confirming material specifications. Contact your technical sales representatives to request custom sizing charts. Submit your CAD drawings for a comprehensive material-match consultation to ensure your design achieves maximum longevity in the field.

FAQ

Q: What is the maximum size available for a large graphite block?

A: Vibration molding handles massive dimensions effectively. Typical industry limits for these blocks often reach lengths of 2 to 3 meters. They frequently exceed cross-sections of 800mm by 800mm. This size capability makes the method far superior for producing large, monolithic parts without requiring multi-piece bonded assemblies.

Q: How does medium grain vibration molded graphite affect CNC machining?

A: Medium grain materials machine easily but yield a slightly textured surface finish. It will not hold the micro-details or razor-sharp edges found in ultra-fine isostatic graphite. Therefore, it serves better for heavy structural parts, large furnace fixtures, and roughing EDM electrodes rather than fine finishing tools.

Q: Can a high temperature graphite block be used in an oxygen-rich environment?

A: No. Standard uncoated carbon materials begin oxidizing rapidly in air at temperatures exceeding 400°C. For oxygen-rich environments at elevated temperatures, you must apply specialized anti-oxidation treatments, such as silicon carbide (SiC) coatings, to prevent the material from deteriorating and burning away.

Q: What is the difference in thermal conductivity between vibration molded and extruded graphite?

A: Density and grain orientation dictate thermal transfer. Extruded materials suffer from high porosity and strong directional bias, leading to inconsistent heating. Vibration molded blocks offer tighter consolidation and moderate anisotropy. This results in more uniform, predictable thermal transfer across the entire block during extreme heating cycles.
