How To Select Graphite Parts for Semiconductor Equipment: Purity, Coating, And Machining Requirements

Choosing Graphite Parts for Semiconductor Equipment is not simply a matter of specifying “high-purity graphite.” A component that works reliably in crystal growth may be unsuitable for an EPI reactor, MOCVD chamber, ion implanter, or plasma etching system. Contamination sensitivity, thermal gradients, plasma exposure, geometry, coating integrity, dimensional stability, and particle generation can all change the material specification. For procurement and process engineers, the practical goal is therefore to match the graphite substrate, impurity limits, surface treatment, and machining requirements to the component’s actual operating environment rather than relying on a single purity percentage or material grade.

Which Graphite Parts Are Common in Semiconductor Equipment?

Different equipment platforms use graphite because it combines high-temperature capability, thermal conductivity, electrical conductivity, machinability, and dimensional stability under suitable process conditions. Common Graphite Parts for Semiconductor Equipment include heaters, susceptors, wafer carriers or boats, gas distribution components, electrodes, and chamber-facing components.

Graphite heaters convert electrical energy into controlled heat or form part of a high-temperature thermal field. Electrical resistivity, cross-sectional uniformity, machining consistency, and thermal expansion therefore matter together. A geometrically accurate heater can still produce an undesirable thermal profile if its material properties vary significantly through the component.

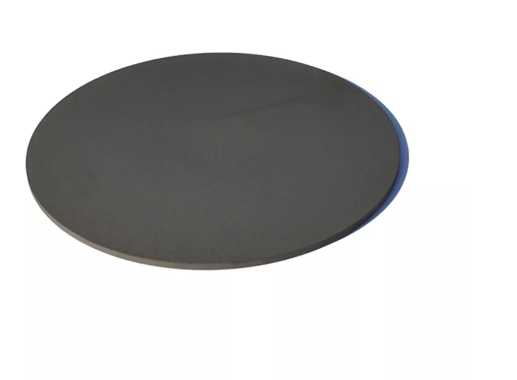

Susceptors support or thermally couple wafers during processes such as epitaxy and MOCVD. Flatness, thermal uniformity, surface condition, and coating integrity are often more important than nominal material strength alone. SIAMC's semiconductor application range includes heaters, susceptors, gas injectors, and gas distribution plates for epitaxial equipment.

Wafer boats and carrier fixtures require consistent wafer positioning, controlled slot geometry, and resistance to thermal distortion. Graphite is application-dependent here; equipment design, process chemistry, and the required surface condition determine whether bare or coated graphite is appropriate.

Gas distribution plates and injectors can contain many holes, channels, or complex internal features. Hole diameter, positional accuracy, surface finish, and dimensional consistency directly influence the reproducibility of gas delivery.

Graphite electrodes are used in selected ion implantation and plasma processing configurations. SIAMC's semiconductor range includes graphite electrodes and other high-purity components for ion implantation and plasma etching environments.

Chamber liners, shields, and other chamber-facing graphite components must be evaluated primarily for plasma or chemical compatibility, contamination risk, erosion behavior, and particle generation rather than simply for mechanical strength.

For customized designs, Machined Graphite Parts can include complex holes, profiles, slots, thin sections, and mating features, but the required graphite grade should be selected before the machining specification is finalized.

How Do Process Requirements Change the Graphite Specification?

The same drawing should not automatically receive the same graphite specification across every semiconductor process. The dominant failure mechanism changes with temperature, atmosphere, ion exposure, precursor chemistry, and contamination sensitivity.

Crystal-growth components experience a strong combination of high temperature and contamination sensitivity. SIAMC applies graphite and insulation materials in SiC crystal-growth thermal fields, including graphite crucibles, internal components, seed covers, heating tubes, and heaters.

EPI and MOCVD shift more attention toward wafer-temperature uniformity and the chemistry of the surface exposed to the process environment. A susceptor specification therefore needs to connect substrate properties, finished geometry, and coating requirements rather than treating them as three independent purchase items.

Ion implantation places greater emphasis on beam-facing geometry, erosion, and contamination from exposed components. Plasma etching adds plasma chemistry and particle generation to the decision. Reviewing the complete range of Semiconductor Graphite Applications is useful when separating these process-specific requirements.

How Should Purity, Ash, Grain Size, Density, and Porosity Be Specified?

Do Not Use Carbon Percentage Alone

Purity specifications for Graphite Parts for Semiconductor Equipment should start with the process contamination budget. A statement such as “99.999% graphite” is incomplete unless the buyer understands how purity was calculated, what analytical method was used, whether the number refers to total ash or measured elemental impurities, and whether the test represents the raw block or the finished component.

Ash content measures non-combustible residue after graphite is oxidized under a defined test procedure. It is valuable as an overall cleanliness indicator, but two materials with the same total ash can have very different elemental profiles. One may contain impurities that have little effect on a particular process while another contains elements that are tightly restricted.

For semiconductor use, establish an element-specific control list when the process requires it. Transition metals such as iron, nickel, chromium, and copper may require attention in contamination-sensitive environments. Alkali and alkaline-earth elements can also matter, while boron or phosphorus may be especially significant where unintended dopant introduction is a concern. The correct list and limits must come from the process requirement rather than a universal graphite specification.

Analytical methods should also be identified in the purchase specification. Techniques such as GDMS and ICP-OES/MS can provide information that a total-ash result alone cannot. SIAMC's testing platform includes ash and element-content testing as well as GDMS and ICP-OES/MS, while its purification services list options down to 5 ppm. Its fine-grain high-purity isotropic graphite also lists low ash content with 5 ppm available.

A suitable starting material such as High-Purity Isotropic Graphite should still be evaluated against the exact component and process rather than accepted solely because it meets a headline ash value.

Evaluate the Graphite Microstructure Together

Grain size influences how cleanly small features, narrow slots, sharp transitions, and thin walls can be machined. Fine-grain graphite generally supports more detailed geometry and more consistent finished surfaces than a coarse structure, although grain size cannot be considered independently of strength, density, and manufacturing route.

Bulk density is useful because it reflects the amount of solid material within a given volume, but selecting the highest density on a data sheet is not automatically correct. Density should be assessed with porosity, pore distribution, thermal properties, strength, and uniformity.

Open porosity deserves particular attention for coated parts. The graphite surface and pore structure influence coating preparation and the interface between the substrate and deposited layer. Excessive or inconsistent porosity can also make contamination control and surface reproducibility more difficult.

Material uniformity is especially important for heaters, large susceptors, rings, and components that experience multidirectional thermal loading. Isotropic material reduces directional property differences, helping engineers obtain more predictable thermal expansion and mechanical behavior throughout complex Graphite Parts for Semiconductor Equipment.

When Should You Choose SiC, TaC, or PyC Coated Graphite Parts?

Coating selection should begin with the process environment rather than with the assumption that a more expensive coating is automatically better. The coating must protect the graphite while remaining compatible with thermal cycling, geometry, process chemistry, and the required contamination level.

SiC-coated graphite is frequently selected where a dense ceramic surface is desirable while retaining graphite as the lightweight, machinable thermal substrate. TaC becomes relevant where the process places more severe demands on the coating at very high temperatures. PyC offers a carbon-based surface and can function as a protective or sealing layer where its chemical characteristics fit the process.

SIAMC provides SiC TaC PyC Coatings for graphite components, with its coating services covering semiconductor crystal-growth and CVD-related applications.

Coating thickness must also be part of the dimensional strategy. If a precision pocket, wafer seat, bore, or mating diameter receives coating after machining, the finished dimension changes. Drawings should therefore identify which dimensions apply before coating, which apply after coating, and which surfaces must be masked. This detail prevents a component from meeting both the machining and coating specifications individually while failing the final assembly requirement.

How Should Tolerances, Surface Roughness, and Complex Machining Be Defined?

Precision machining requirements should be based on function. Applying the tightest possible tolerance to every dimension increases manufacturing difficulty without necessarily improving process performance. For Graphite Parts for Semiconductor Equipment, critical dimensions usually involve wafer positioning, concentricity, flatness, parallelism, hole location, gas-flow features, electrical contact, and interfaces with adjacent hardware.

Surface roughness should be stated with a defined parameter and unit, such as the required Ra value, instead of using terms such as “smooth finish.” Contact surfaces, sealing interfaces, wafer-support areas, gas passages, and coating substrates can require different finishes. A surface that is unnecessarily smooth may increase machining cost, while a surface that is too rough can affect seating, gas flow, cleaning, or coating consistency.

Complex geometries introduce additional risks because graphite is machinable but brittle. Thin ribs, narrow walls, deep holes, closely spaced apertures, small radii, and interrupted sections need sufficient material around them to resist chipping during machining, handling, cleaning, coating, and installation.

The drawing should define a functional datum system rather than relying only on independent linear dimensions. For a susceptor, for example, wafer-seat flatness may need to be related to the mounting surface. For a gas distribution component, hole position may need to reference the central axis and a clocking datum. Such controls make inspection results more meaningful than a collection of unrelated dimensions.

SIAMC's machining services include milling, turning, drilling, grinding, complex geometries, 3D coordinate measurement, and a listed machining accuracy capability within ±0.005 mm. Actual tolerances should still be confirmed for the specific graphite grade, feature size, geometry, coating condition, and inspection method.

Projects requiring finished-to-drawing components can use Precision Machined Graphite, but the RFQ should clearly separate material requirements, machining requirements, coating requirements, and final inspection criteria.

How Do You Evaluate a Graphite Manufacturer for Semiconductor Components?

A semiconductor graphite manufacturer should be evaluated as a process chain, not merely as a source of graphite blanks. Purification, machining, coating, analytical testing, dimensional inspection, cleaning, packaging, traceability, and change control can all influence the finished component.

One frequently missed purchasing issue is the point in the process at which purity is verified. A purified graphite blank can subsequently be machined, handled, coated, cleaned, and packaged. If the application has a very low contamination budget, buyers should decide whether certification of the starting material is sufficient or whether selected testing should represent the finished component.

Another useful control is a first-article or qualification package covering material properties, critical dimensions, coating condition, and analytical results. This creates a technical baseline for repeat orders and makes supplier changes, material substitutions, or coating-process changes easier to evaluate.

SIAMC is a graphite and carbon materials manufacturer with production, precision machining, purification, surface treatment, and inspection and testing capabilities. Its material testing platform includes density, ash, elemental analysis, porosity, CTE and thermal conductivity testing as well as GDMS, ICP-OES/MS, SEM, XRD and other characterization methods.

Conclusion

Successful selection of Graphite Parts for Semiconductor Equipment requires four specifications to work together: the graphite substrate, contamination limits, surface coating, and finished geometry. Start with the process environment, define ash and critical trace elements separately, evaluate grain size, density, porosity, and uniformity as a group, and then select SiC, TaC, or PyC only where its surface properties match the application. Finally, treat coating thickness, surface finish, dimensional tolerances, and inspection datums as part of one finished-component specification. SIAMC is a graphite and carbon materials manufacturer with integrated capabilities relevant to these material, machining, purification, coating, and testing requirements.

FAQ

What purity should Graphite Parts for Semiconductor Equipment have?

There is no single purity level suitable for every semiconductor process. The specification should combine total ash or total impurity limits with individual limits for elements that can affect the specific wafer, crystal-growth, implantation, deposition, or plasma process. The analytical method and sampling stage should also be defined.

Is 5 ppm ash the same as 99.9995% graphite purity?

Not necessarily. Ash content is the residue remaining after graphite oxidation under a defined test method, while a stated carbon purity can be calculated or measured differently. Buyers should confirm the test method and request elemental analysis when individual contaminants matter.

Is fine-grain graphite always better for semiconductor parts?

Fine grain is beneficial for many precision-machined features and can support consistent surfaces, but it should not be selected independently. Density, porosity, strength, isotropy, thermal conductivity, thermal expansion, purity, and component geometry must also meet the operating requirement.

Should an EPI or MOCVD susceptor use SiC-coated graphite?

SiC-coated graphite is widely suited to semiconductor susceptors where a dense, chemically resistant surface is needed over a graphite substrate. The final decision should consider reactor chemistry, operating temperature, thermal cycling, coating thickness, contamination requirements, and equipment design.

When is TaC coating preferable to SiC or PyC?

TaC can be considered for particularly demanding high-temperature environments where its refractory carbide characteristics provide an advantage. Selection should be based on the specific crystal-growth or semiconductor process because coating stress, substrate compatibility, contamination requirements, and cost also affect the decision.

What information should be included in an RFQ for semiconductor graphite components?

A useful RFQ should identify the operating process, graphite grade or required material properties, ash and restricted-element limits, coating type and finished thickness, drawing datums, critical tolerances, surface roughness, inspection requirements, cleaning and packaging expectations, and any lot-traceability or change-control requirements.
