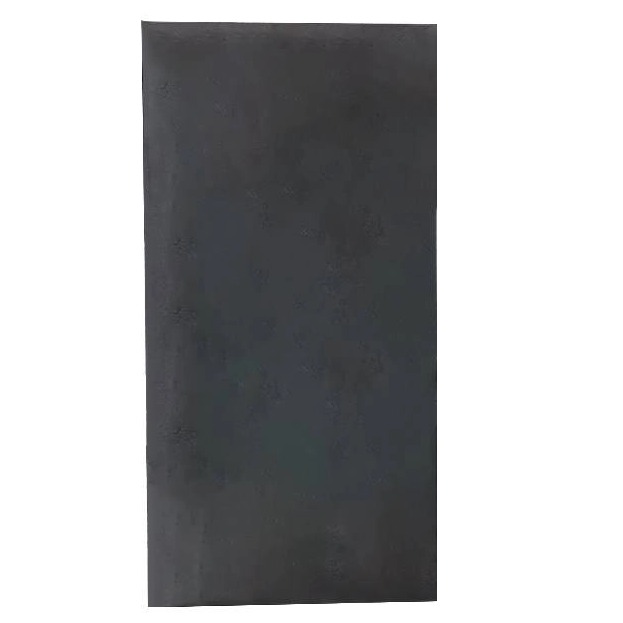

High-purity isostatic graphite block is selected when a machined component needs a fine, comparatively uniform structure, heat resistance, electrical or thermal conductivity, and controlled contamination.
“Isostatic” describes the forming route: the graphite mixture is compacted under pressure applied from multiple directions before subsequent heat treatment. This route is associated with a more isotropic structure than extrusion or vibration molding, so designers can work with properties that vary less by direction. Fine-grain stock also supports detailed machining, although the drawing, minimum wall thickness and achievable finish still depend on the chosen grade and process.
“High purity” addresses residual ash and trace elements, not every performance requirement. It matters when the graphite sits close to semiconductor feedstock, wafers, molten material or a controlled furnace atmosphere. Heat resistance, thermal-shock behavior, conductivity, strength, density and machinability explain why graphite can function in these environments, but each property must be checked on the actual supplier datasheet.
The blocks commonly become crystal-growth hot-zone parts, photovoltaic fixtures, EDM electrodes, furnace components, casting dies and specially qualified nuclear parts; the block itself is usually starting stock rather than the finished application.
| Application family | Typical machined forms | Why the material is considered | What still needs verification |
|---|---|---|---|
| Semiconductor and SiC crystal growth | Crucibles, heaters, seed-related fixtures, susceptors, shields and other hot-zone parts | Low contamination potential, machinability and performance in controlled high-temperature environments | Trace elements, ash test method, density, thermal properties, atmosphere compatibility, coating and dimensional tolerances |
| Photovoltaic manufacturing | Monocrystalline-silicon hot-zone parts, heaters, support fixtures, wafer carriers and graphite boats | Thermal stability, repeatable geometry and purity where graphite is close to silicon or wafers | Process chemistry, wafer-contact requirements, particle control, cleaning, coating and batch documentation |
| Electrical discharge machining | Sinker-EDM electrodes with detailed cavities, ribs and other machined features | Electrical conductivity and machinability support complex electrode shapes | Grain size, resistivity, strength, feature geometry, wear expectations and target surface finish; see peer-reviewed work on graphite electrodes in sinking EDM |
| High-temperature furnaces | Heating elements, fixtures, trays, supports, rings, shields and susceptors | Heat resistance, thermal-shock behavior, conductivity and machinability | Maximum service temperature in the actual atmosphere, oxidation exposure, load, thermal cycling, joint design and protective coating |
| Metallurgy and continuous casting | Dies, molds, guides, crucibles and handling components | Thermal behavior, machinability and chemical resistance can suit contact with selected melts and thermal cycles | Compatibility with the alloy, oxidation, erosion, porosity, surface treatment, cooling arrangement and dimensional change |
| Qualified nuclear applications | Purpose-designed sleeves, supports, containers or other components made from dedicated nuclear graphite grades | Graphite has documented roles in high-temperature nuclear systems | Applicable code, irradiation behavior, grade qualification, full traceability and design approval; consult the IAEA Nuclear Graphite Knowledge Base |
These are application families, not an assertion that one block grade can serve every listed component. Finished-part suitability depends on the operating environment and the complete material specification.
“High-purity isostatic graphite” does not by itself define oxidation resistance, coating needs, EDM behavior, dimensional capability, analytical method or qualification for safety-critical service.
A headline purity value is only meaningful when the buyer knows how it was measured and which elements matter to the process. Total ash can support screening, while elemental methods can reveal contaminants that a single total does not identify. SIAMC's application-specific selection guidance likewise recommends evaluating the exact component and process instead of accepting one ash number alone.
Graphite can oxidize in oxygen-containing environments; a high temperature that is feasible in inert or vacuum service is not automatically acceptable in air.
For EDM, electrode geometry and discharge conditions can affect deformation, wear and the resulting surface. “Fine grain” alone does not predict the full machining outcome.
For nuclear service, a generic high-purity block must not be substituted for a qualified nuclear graphite grade. The application requires its own code, irradiation data, traceability and engineering approval.
A coating can change surface interaction and contamination behavior, but it introduces its own adhesion, thickness, inspection and service-compatibility requirements.
Start with the finished component and operating environment, then specify purity, structure, physical properties, dimensions, machining, coating and verification—rather than asking only for a “high-purity block.”
Name the component and process. State whether the stock will become a crystal-growth crucible, EDM electrode, furnace fixture, casting die or another part. Include whether the supplier delivers raw block, near-net stock or a fully machined component.
Describe the operating environment. Give the temperature range, atmosphere or vacuum, thermal-cycle pattern, chemical contact, mechanical load and expected contact with product material.
Define purity and the acceptance test. Specify maximum ash and any critical elemental limits, sampling location, test method and required certificate. For context, SIAMC's fine-grain high-purity isotropic graphite product page lists 5 ppm ash availability, but the purchase specification must bind the exact grade and order.
List the structural and physical properties that control the design. Depending on the job, these may include grain size, bulk density, open porosity, resistivity, thermal conductivity, coefficient of thermal expansion, flexural or compressive strength and property direction.
Provide the drawing and stock envelope. Include block dimensions, machining allowance, finished tolerances, surface finish, thin-wall or deep-feature risks, edge treatment and inspection datum.
State downstream processing. Identify purification, cleaning, coating, impregnation or packaging requirements, and define how these steps will be inspected.
Request traceability and inspection records. Ask for the grade, batch or lot identification, applicable test results, dimensional report and nonconformance process appropriate to the risk.
SIAMC publishes the relevant application categories and lists machining, testing, purification and coating among its service categories. A useful supplier discussion should still begin with the requirement set above, not with an assumed off-the-shelf grade.
Share the application, drawing, purity target, test method and processing needs so the material and manufacturing route can be reviewed together.
Discuss your graphite requirementsHigh-purity isostatic graphite blocks are versatile starting materials, but the correct buying decision is application-specific: approve a grade only after the component, environment, critical properties and verification method are defined.
The most common uses cluster around semiconductor and photovoltaic hot zones, EDM electrodes, furnace hardware, metallurgical or casting parts, and dedicated nuclear graphite components. Across these fields, buyers value combinations of purity, a fine and comparatively uniform structure, machinability, conductivity and high-temperature behavior. Those advantages are real selection reasons, not a substitute for a datasheet, drawing review or qualification plan. A disciplined specification also makes quotations more comparable and gives incoming inspection a clear, documented acceptance basis.
These answers distinguish block stock from finished parts, purity from qualification, and candidate materials from approved grades.
Usually not. It is typically stock material that is cut and machined into a crucible, electrode, heater, fixture, die, carrier or another application-specific shape.
It refers to a forming route in which pressure is applied from multiple directions, supporting a comparatively isotropic, fine-grain structure. The final properties still depend on raw materials, processing and grade.
Graphite parts can sit close to feedstock, crystals, wafers or hot-zone surfaces, so residual ash and trace elements may create contamination risk. The buyer should specify both the limit and the analytical method.
No. Feature size, strength, resistivity, machinability, target finish, discharge conditions and acceptable electrode wear all influence grade selection.
No. It is often favored when fine features, isotropy or contamination control justify it. Other forming routes may be suitable for larger, less intricate or differently loaded parts, so the application should decide the material route.
Do not assume so. Graphite's high-temperature capability is strongly atmosphere-dependent because oxygen can drive oxidation. Specify the atmosphere, temperature and exposure time, then evaluate protection or an alternative material if needed.
No. Nuclear service requires a dedicated grade, qualified data, traceability, applicable codes and engineering approval. Purity alone is not nuclear qualification.
Include the component and drawing, operating atmosphere and temperature, chemistry, purity limits and test methods, required physical properties, block size, machining and finish, coating or purification, quantity, inspection and traceability.
