What are the key properties of isostatic graphite for high-temperature applications?

Why Isostatic Graphite Starts With Structural Uniformity

Isostatic forming is valuable because it aims for more directionally uniform bulk properties, reducing the orientation effects that complicate thermal design.

Conventional graphite is inherently anisotropic at the crystal level: heat, electricity, and expansion behave differently along and across the graphite layers. A polycrystalline block averages many crystallites, while isostatic pressing applies pressure from all directions to limit large directional gradients in the formed body. The result is not perfectly identical behavior in every direction, but generally greater isotropy than strongly oriented forming routes.

For a designer, this matters because temperature distribution, dimensional change, and stress become easier to model when properties vary less with part orientation. Uniform fine grain also supports intricate machining and smoother surfaces. Still, the label isostatic is not a specification. Grain size, density, porosity, binder system, heat treatment, purification, and batch control can all change the finished grade.

Thermal Conductivity Must Be Read as a Temperature-Dependent Property

Thermal conductivity governs heat spreading, but the relevant value is the grade's value across the actual operating range—not a single room-temperature number.

Graphite can move heat away from local hot spots and help equalize temperature across heaters, susceptors, molds, crucibles, and structural fixtures. This is one reason it is useful in thermal-processing hardware. But conductivity is not constant: it depends on temperature, density, porosity, orientation, and graphitization. The 2022 review of graphite thermal expansion and conductivity explains why thermal transport must be treated as a material- and temperature-dependent property.

Ask for a conductivity curve over the duty range and the test direction. If the part sees steep gradients, transient calculations may also require specific heat, thermal diffusivity, emissivity, and contact resistance. A high room-temperature conductivity value alone cannot predict the hottest point in an assembled furnace.

Low Expansion Helps, but Thermal Shock Is a System Result

Thermal-shock resistance comes from the interaction of low expansion, heat conduction, tensile strength, elastic modulus, geometry, and the severity of the temperature transient.

Low coefficient of thermal expansion reduces strain during heating and cooling. Useful conductivity reduces the temperature difference that creates that strain. Strength helps the part carry the resulting stress, while a lower elastic modulus can reduce stress for a given strain. The IAEA Graphite Knowledge Base describes this combined relationship; no one number represents thermal-shock performance.

Geometry can overturn a favorable datasheet. Sharp corners, bolt preload, thin-to-thick transitions, constrained joints, machining damage, and non-uniform heating concentrate stress. Define ramp rate, quench severity, cycle count, and restraint condition, then review the finished part—not only a small test coupon.

Atmosphere Can Set the Temperature Limit Before Heat Does

Graphite can tolerate very high heat in suitable environments, but oxygen availability and oxidation kinetics can become the controlling limit in air or leaking systems.

For an RFQ, specify vacuum level or gas composition, expected oxygen and moisture, leak scenarios, flow velocity, pressure, exposure time, and startup/shutdown conditions. Where coatings or controlled atmospheres are proposed, request compatibility and life evidence for the exact cycle. Treat oxidation protection as a system control, not as an intrinsic guarantee attached to the word graphite.

The Seven Datasheet Properties That Matter Most

A defensible comparison covers conductivity, CTE, strength, modulus, density/open porosity, purity, and electrical resistivity under stated test conditions.

Also request grain size, permeability where gas transport matters, emissivity assumptions for radiation models, and dimensional tolerances after machining. Compare like with like: a typical value is not a guaranteed minimum, and a room-temperature coupon test is not a hot-component design allowable.

Qualify the Grade Against the Real Thermal Cycle

The safest selection sequence defines atmosphere, temperature cycle, load, geometry, contamination limits, and failure criteria before matching a grade and test plan.

1. Describe the duty: continuous or cyclic use, peak and normal temperatures, ramp rates, soak time, and expected cycle count.

2. Define the environment: vacuum, inert gas, process gas, pressure, oxygen/moisture limits, and credible upset conditions.

3. Map the loads: self-weight, clamping, contact pressure, vibration, thermal restraint, and any electrical current.

4. Set contamination limits: identify elements that can affect the process, workpiece, crystal, or furnace insulation.

5. Review the geometry: flag stress raisers, thin sections, joints, threaded details, and machining orientation.

6. Request controlled evidence: grade-specific values with test standards, directions, temperature ranges, statistical tolerances, and batch traceability.

7. Validate proportionately: use thermal analysis, coupon testing, or a representative component cycle when failure cost justifies it.

Where SIAMC Fits Into the Evaluation

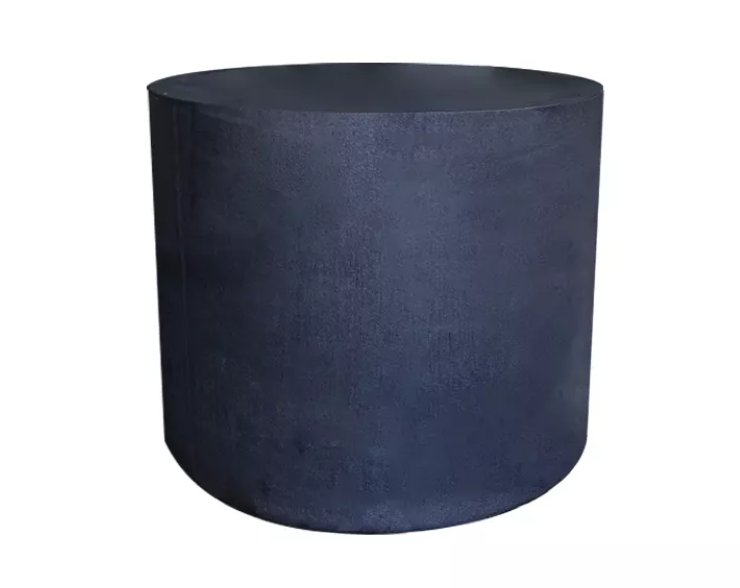

SIAMC offers fine-grain, high-purity isotropic graphite and identifies high-temperature-furnace use, but the buyer should still request grade-specific evidence for the intended duty.

SIAMC's verified product page lists fine-grain, high-purity isotropic graphite and identifies thermal-shock resistance, conductivity, corrosion resistance, and low-ash availability as relevant characteristics. Its furnace application page identifies uses such as heating elements, linings, and other high-temperature components.

The company profile also lists machining, purification, surface treatment, inspection, and testing services. Those capabilities can support a qualification program, but suitability should be tied to a named grade, drawing, atmosphere, temperature cycle, and acceptance criteria.

Conclusion

Choose isostatic graphite by the complete property-and-environment system, then verify the proposed grade at the intended temperature and atmosphere.

The essential properties are not independent checkboxes. Conductivity and expansion shape thermal gradients and strain; strength and modulus determine how those strains become stress; density, porosity, purity, and microstructure affect repeatability and process compatibility; atmosphere governs whether oxidation becomes the dominant failure mechanism. A strong procurement decision turns each factor into a measurable requirement and confirms it with grade-specific data.
